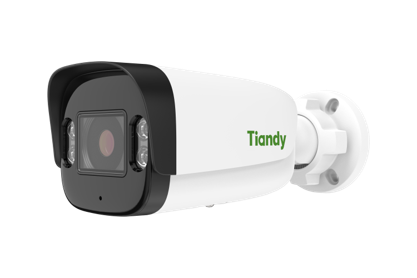

Model No.: TC-C34UV 3FRB-4
| Camera |
|
| Image Sensor | 1/1.8"CMOS |
| Min. Illumination | Color:0.0001Lux@(F1.0,AGC ON) |
| Shutter Time | 1s~1/100000s |
| Day&Night | Fixed IR-cut |
| WDR | 120dB |
| S/N | >46dB |
| Angle Adjustment | 0~360°(P); 0~80°(T); 0~360°(R) |
| Lens |
|
| Lens Type | Fixed focal lens |
| Focal Length | 4mm |
| Lens Mount | M16 |
| Aperture Range | F1.0 |
| Aperture Type | Fixed |
| Field of View | 88.8°(H); 49.0°(V); 103.1°(D) |
| DORI Distance | Detect:80m Observe:31.7m Recognize:16m Identify:8m |
| Illuminator |
|
| White LEDs | 4 |
| Whitelight Distance | 15m |
| Compression Standard |
|
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~6Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D |
| Audio Sampling Rate | 8kHz/32kHz/48kHz |
| Image |
|
| Max. Resolution | 4MP,2688×1520@25fps |
| Main Stream | PAL:25fps(2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC:24fps(2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720) |
| Sub Stream | PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:24fps(704×480, 704×240, 640×360, 352×240) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| ROI | 8 rectangular static areas |
| OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48/64*64; Lattice |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Feature |
|
| General Alarm | Motion Detection; Mask Alarm |
| Exceptions Alarm | Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict; FTP Server Exception ; Network Disconnection |
| Linkage Method | Send Email; Trigger Recording; Trigger Capture; Notify Surveillance Center |
| Video Analytics | Human/Vehicle Classification; Tripwire; Perimeter |
| Rules of Behavior Analyse In 1 Scene | 2 |
| Network |
|
| ANR | Yes |
| Protocols | RTSP; HTTP; HTTPS; TCP; UDP; UPnP; ICMP; IGMP; SNMP v1\v2\v3; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; TLS v1.2; SSL; QoS; IPv4; IPv6; SSH; Unicast; Multicast; RTCP; ARP; RTP; SRTP; FTP |
| System Compatibility | ONVIF(Profile S/T/G/M) ; SDK; CGI; Milestone |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Moblie Client | EasyLive Plus |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Interface |
|
| Communication Interface | 1×RJ-45 (10/100 Base-T) |
| Built-in Mic | 1×Built-in Mic |
| Reset Button | Yes |
| On-board Storage | Support microSD/microSDHC/microSDXC card,up to 512GB |
| RTC | Yes |
| General |
|
| Web Client Language | 19 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian |
| Operating Temperature | -35℃~65℃(-31℉~149℉) |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -35℃~65℃(-31℉~149℉) |
| Storage Humidity | 10%~95%RH(non-condensing) |
| Power Supply | DC12V±25%,Max. 9W; PoE:IEEE 802.3af,Max. 9.6W |
| Protection | Surge4000V; ESD6000V; IP67 |
| Boundary Dimensions | 204(L)84(W)76(H)mm |
| Package Dimensions | 215(L)95(W)120(H)mm |
| GrossWeight | 0.60kg |
